PainmakerLCD 2.0
Worlds most advanced paintball marker
New electronics for Brass Eagle's Rainmaker

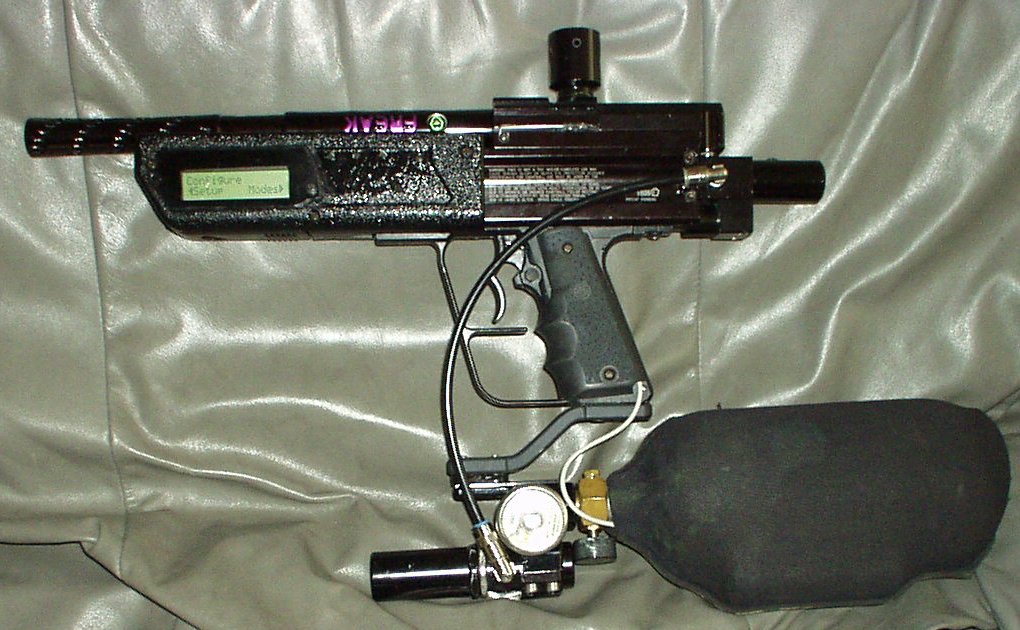

-who says the standard Rainmaker shroud have to be ugly ? - here it is - black - (picture taken with flash)
This is what you get :
-PainmakerLCD board
-Better trigger switch , (much tighter)
-The optocoupler if you want to use the Revolution-Starter option
-Schematics you might need.
-Shipping to anywhere on Earth
Those were sold for US$ 230.
Some facts :
Features & Menus:
It all starts with Intro ...

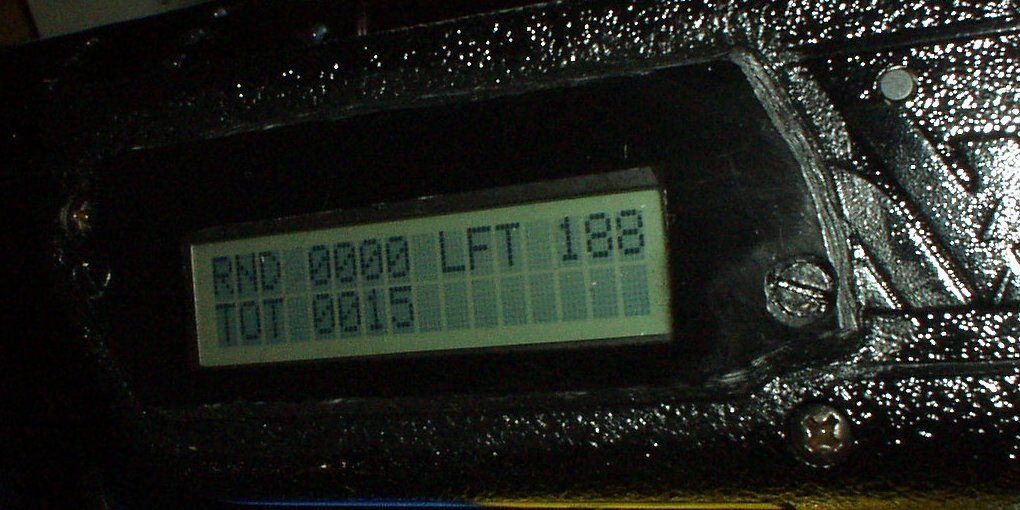

(Ready For Action: Totally fired 0015 , this round 0000 , LFT(left in loader 188 balls))
(This is the playing screen)
This is how the LCD looks like
during a game. There are two independent counters that can be reset
when you
like , and can be saved to EEPROM and loaded at next game.

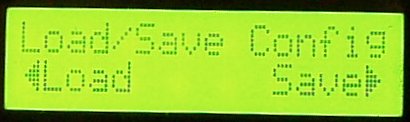

Load/Save Configuration , Painmaker LCD loads all previously saved settings at each boot, if you then make any changes they will not be saved until you save them , on the other hand , you can make some changes you are not happy with , and just load the previous (takes only two button-presses to do that.)
(After 278 balls are fired the last round (since last RND reset), totally 278 this "day" (since last TOT reset) , and there is 13 left in loader) so the LED is lit as a warning (because warning is on (in this case) if there are <=25balls left)
(This is the playing screen)
This is ho
w the LCD looks like during a game
The loader detected that the loader lid is open ,(reloading) the display is showing this , until the loader is closed , safety is on. , the LED is turned off.
Loader is closed , the result of the above calculation (balls left + balls in a pouch) is 116. (This is the playing screen)
Reset menu : allows to reset total counter , and/or round counter "-" is left button "+" is right button
Menu : Battery - Shows battery voltage ,+/- 0.01 volt ,( it's calibrated with a Fluke.)
this is updated so fast ,
that voltage changes are "animated" on the LCD (when 46 changes to 45
both "6" and "5" are showing because the 10bit DAC cannot
decide the LSB
very cool.
Low Battery Warning Menu : ... user can decide when the low-battery warning (audio) should be activated, (the minimum working voltage is different for Ni-Mh , Ni-Cd & Alkaline batteries. (+/- buttons increase/decrease this value , holding down "+" increases value fast , holding down "-" decreases value fast)
a "beep" sounds
every idle 2 sec if voltage is low
If the battery is low , It's also on the main screen...
Temperature
: a precalibrated to 0.5° C state-of-the-art IC is measuring
the
temperature , and sending the results serially to the CPU ,
It's not like the "AngelLCD"
thermometer
, but a really
professional (industrial) thermometer ,
calibrated to +/- 0,5°C . If you
live in
Norway (like me) and play when it's about
10°C , it
might be cool to know how cold it is , as the paint starts breaking
really easy
at that low temperatures . It might be useful at high temperatures
too.
added
Fahrenheit degrees , at first I wanted to calculate it , but it's
pretty
difficult because of the decimals needed , , so I use a
lookup-table , to
save space the table have 60 entries , 1..60 °C
,
so the Centigrade has higher resolution (0.5deg) and the Fahrenheit
temperature
is the same for 25°C and 25.5°C.
Configure menu is where settings like burst-size and loader capacity is set in "setup" part , and burst-on/off , fullauto and other are under "modes" , go to left or right to continue setup from here.
Loader capacity presets the maximum Loader capacity ... (+/- buttons increase/decrease this value)
188 is the space in a Revolution
+ it's neck.
Pouch capacity must be known, (to add right amount of balls when loading) ... ("+"/"-" buttons increase/decrease this value , holding down "+" increases value fast , holding down "-" decreases value fast)
Here is the low ammo warning configuration , it's now set to warn me when 25 balls are left ("+"/"-" buttons increase/decrease this value , holding down "+" increases fast , holding down "-" decreases fast)
Tournament-Lock This menu will ONLY appear if the Tournament-Lock is ON and then NONE of the menus below will show. Causing the last selected configuration being used without any way to change it during game.
This is THE BEST Tournament-Lock feature because : It will let me not only lock-out the coolest features , (like any Tournament-Lock does) , but It allows to keep any settings , and only restrict changes. Like : I'm will play in a Scenario-Game (Command & Conquer) which allows any fire-mode up to 9bps , even fully automatic . So I can choose any mode I like , and still restrict myself from being able too choose 13bps . by selecting Tournament-Lock when rebooting , , and a battery-change does NOT affect the Lock's state.
The only way to toggle this selection is to reboot , while holding all 3 menu-buttons (beeping) depressed in about 2 seconds (during the boot & intro sequence) which is , needless to say , not possible during the game. (playing with battery & beeping 2 seconds will catch referees attention.) m and the process would need to be undone at end of game.
the display also shows that Tournament-Lock is active during the game , (unless when that space is used to tell important things like Low-Battery) , anyway the first "Tournament Lock is On" can be reproduced.
Dwell Adjust : 1...30 ms in 1ms steps .
no rainmaker can shoot at
speeds like 15bps ,because it will not have time enough to feed each
ball , only the
balls that quickly gets into place. this is because of the
low
pressure controlled ram needs a minimum of time to cycle the mechanism
. and at
higher rate-of-fire there is very little time to feed next
ball.
When this time is too long , time is wasted , precious time that could
be used
to feed ball... (any default configuration on any controller
board waste
some time) on the other hand
, When
this time is too short , The rainmaker will have a significant blowback
,
(because it'll open the "chamber" when there is still very high
pressure in the barrel) , of if this time is way-to-short , it will not
fire at
all , (the ram is reversed before it's in hammer-release position)
So , this value should be set as low as possible , allowing normal function , this will extend the ball-loading-time. This setting does NOT influence the rate-of-fire in any way, each ms set here is compensated for.
The optimal value of this setting will vary from rainmaker to rainmaker , because the time delay needed is dependent on : low-pressure-spring , ram , and hammer spring.
Also , having the optimal setting will save battery , the 9volt battery works pretty hard when it opens the MAC valve. Because of the way PainmakerLCD is constructed it uses a higher voltage to control the Power-MOS-FET that opens the 6volt valve. This gives a impressive raise-time and very "strict" MAC-valve movement. , (anyway use Ni-Cd rechargeable battery)
To make the adjustment easier
to try out , There are 2 Dwell settings that can be programmed , and
then
toggled.
Configuration of "burst" or "family" mode ("+"/"-" buttons increase/decrease this value , holding down "+" increases fast , holding down "-" decreases fast)
BurstStop = (On/Off) let's user choose if a burst should be interrupted when trigger released , or not.
AutoBurst = (On/Off) , Similar to AutoRepeat , if on , burst repeats with a brief pause in between (until trigger released) , a three ball burst sounds like "bang-bang-bang....bang-bang-bang....bang-bang-bang...."
Autorepeat : whatever
the fire
mode is (normal/burst/turbo) , when trigger is held down 250ms
(0.25sec) , the
Painmaker switches to fully automatic until trigger is released , good
for bad
situations (and then returns to the mode
it was in before) ,
(pressing "+" is "ON" , pressing "-" is
"OFF")
Burst: turns on/off the
burst/family
mode , which can be set to anything between 2 and 255 balls
(pressing "+" is "ON" , pressing "-" is
"OFF")
Fully-automatic : turns on/off the ammo-wasting mode. (pressing "+" is "ON" , pressing "-" is "OFF")
Turbo Mode menu : turns on/off the turbo mode. (pressing "+" is "ON" , pressing "-" is "OFF")

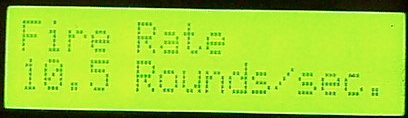

Fire rate , applies to all fire-modes and can be programmed to anything between 6.5 and 15** balls/s in 0.5rounds/s increments ("+"/"-" buttons increase/decrease this value one step each click)) this setting limits the fire rate in ANY selected mode. It applies to all fire modes.
**There is no gravity-loader that will provide more than 13balls/second continuously (more than 4 shots), my tests gave me some "blanks" in between shots. There are many things that will set the maximum fire-rate you can achieve : Loader, Dwell -(shorter is better) ,Low-Pressure system's pressure (a little higher pressure will move bolt faster) , Bolt , (heavy bolt will move slower) +.
I made the selection go to 15bps in 0.5bps steps to allow everybody experiment and find your own maximum setting , my calculations (of recorded audio form Rainmaker) makes me believe that 15bps is possible with forced feed or a longer vertical feed , (if the balls are "falling" faster into chamber there won't be blanks) , 10 or 10.5 is the maximum of what my revolution loader can deliver continuously.
Backlit sets the intensity of the backlit when in menu mode , (backlit is always of in game mode) - 0 means off , 255 = max intensity
Those three menu-buttons ("+" , "Select" , "-") and the mini-jack connector to the Revolution-Loader
Battery is now inside the grip
...
but a higher-capacity battery is recommended for trouble free , long
play , go
see the "PainmakerLCD Power" page..
(Revolution-Loader mod.)
the button that detects when
the lid is open , and the high-intensity-LED that's used as a warning
button & LED in place ,
and also the original Revolution-loader electronics.
closed revolution-loader , with
the mini-jack connector
difficult to photograph , but
it's the high intensity almost LED blending the camera to tell the ammo
is low
Rainmaker , Revolution and Evolution loader are Brass
Eagle's trademarks.
