CarButtons

Interfaces car's "media control buttons"  (usually on steering wheel) to PC using USB.
It is also compatible with many other resistive input devices, even home-made buttons.




  What CarButtons does:

- It connects resistive "steering wheel media buttons" to your carputer/PC/laptop.
- It can interface many after-market multi-button-controllers for gear-shifter, steering wheel, (like Sony RM-X4S), plus many more...
- With Carbuttons , your computer can detect and respond to:
    ...when battery is below a minimum, or starts to charge
    ...when the engine is stopped, and started, so the computer can act on these events.
    ...detect reverse-light, and switch to an USB cam.
    ...interface radar/laser warning, and maybe act by pause music and play a warning signal.
- You can simply interface a *lot* of your own buttons, using only 2 wires, each button needs only one resistor to make it "unique".
- or/and you can use Girder (www.promixis.com) to make this device do "anything" - you can control menus, media and much more.

I am currently accepting orders for this device, orders are usually shipped next business day.
You can order it by sending me (andre.kjellstrup (æt)  gmail.com) US$ 110 (shippingt included !),  just click the link below (PayPal Icon) to purchase.

Buy fully assembled and tested CarButtons here:

It is also possible to purchase the preprogrammed microcontroller, so you can build the device yourself.

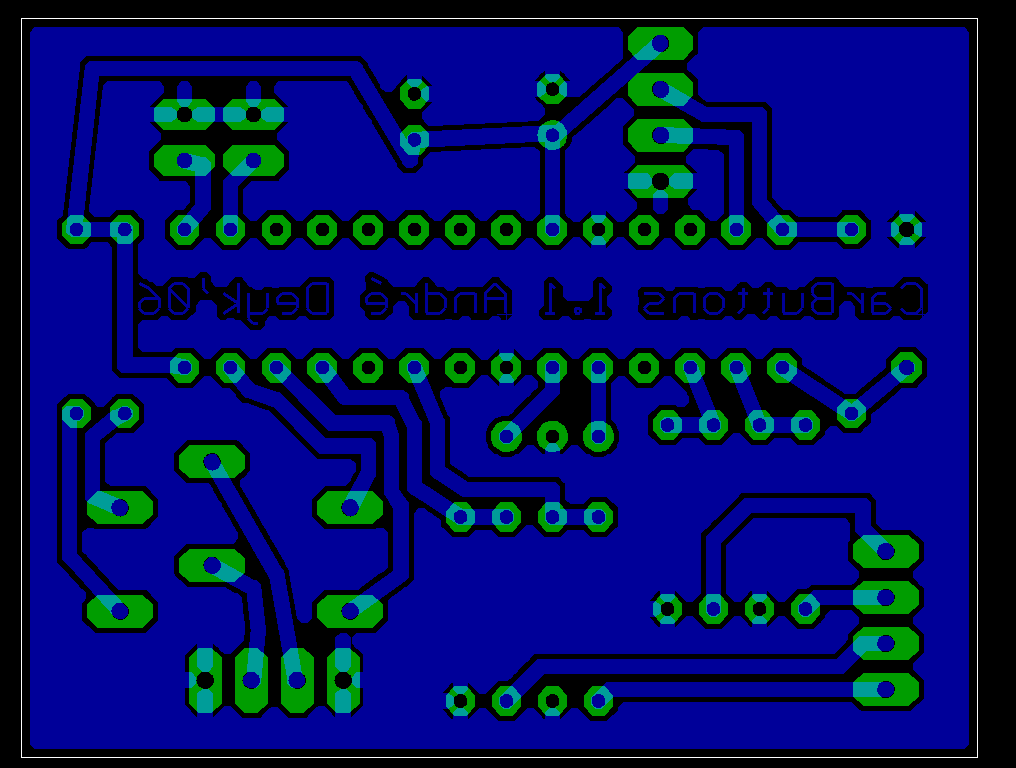

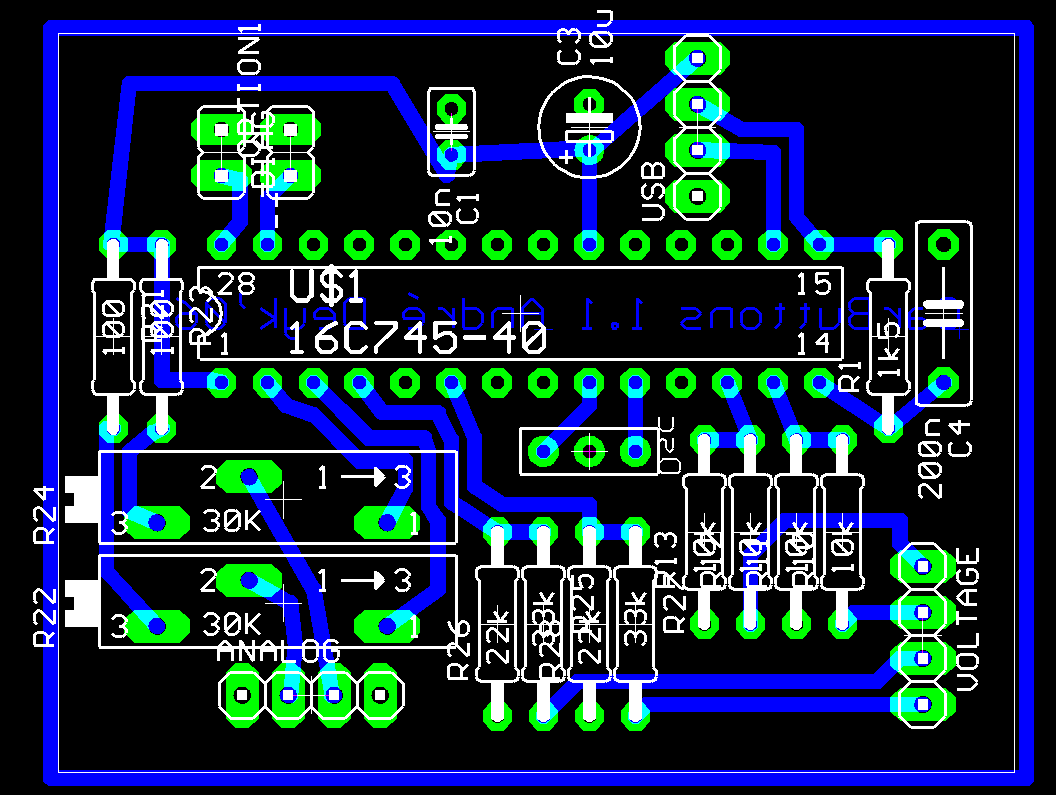

The schematics you will need are here:  carbuttons-componentside.png  ,  carbuttons-schematic.png   ,  carbuttons-solderside.png

You can order the PIC by sending me (andre.kjellstrup (æt) gmail.com) US$30 (shipping  included!),  just click the link below (PayPal Icon) to purchase.

..buy preprogrammed microcontroller only:


CarButtons size=54mm x42mm.

Carbuttons


New version, same size, with USB connector instead of cable.
It uses the same pin-configuration as previous design.
Cable is not included, you probably have such cable around, it's a standard USB A-B cable. (like USB printers use)

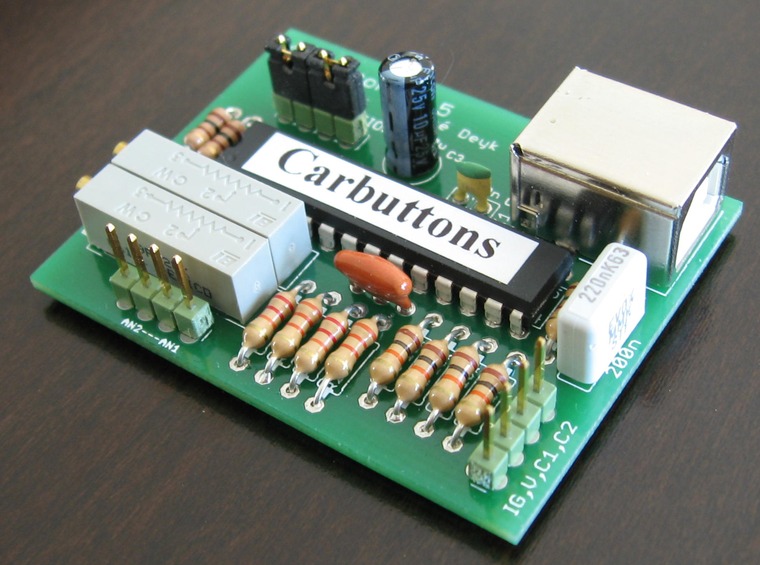

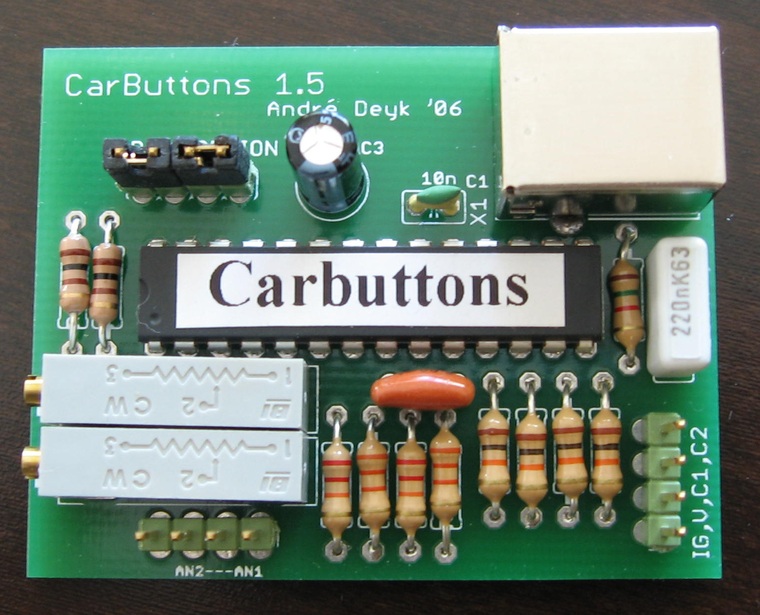

Carbuttons v1.5 PCB

How it works:

This device emulates a standard USB HID* keyboard.
*(this means it does not need any driver because the OS (windows/Linux/osx/windowsmobile) already have it, so there are no driver problems)

No soldering needed, just push the wires onto the sharp, gold plated pins.


Steering wheel media buttons, usually uses 2 wires. When you press a button, you really connect an resistor between two wires, different resistor-values means different buttons, but there is no standard, most such devices also shorts the two wires with one of the buttons.

CarButtons detects the resistance between "GND" and "Analog1"  (or Analog2) input lines, de-bounces it, and sends it as an keyboard character +AltGR (or Ctrl+Alt), this way, the "key press" can be freely mapped to other functions in winamp, or media portal, Centrafuse, and many other applications.

There are also 4 other inputs that accepts 10-15volts :   Ignition, "battery low"  , and two "custom",   Carbuttons sends an unique "key press" when it detects a change to "On" and "Off"  on these inputs, so your software can see difference between "on" and "off" on each input.

How to hook it up to steering wheel media buttons:

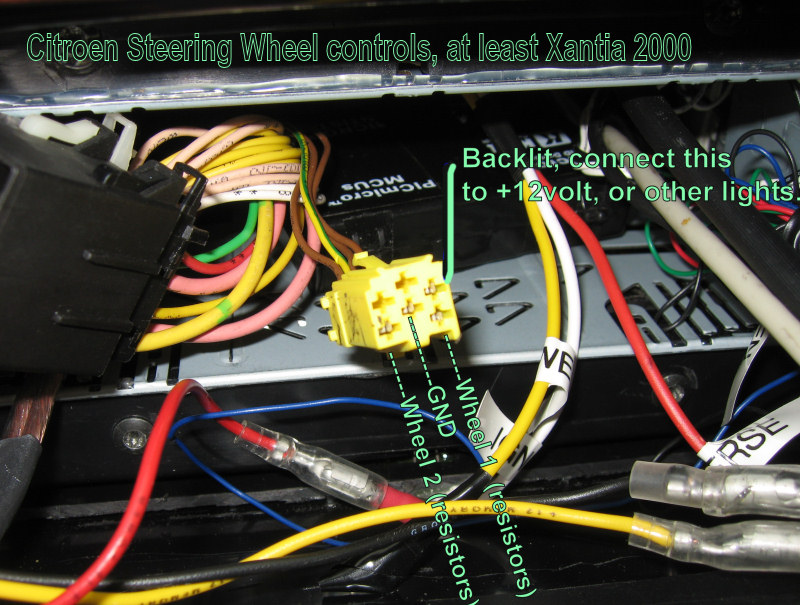

1.- locate the wires, (usually behind the car-stereo).
2.- measure it, when pressing buttons, you should get a resistance, with no buttons depressed, it will be "open circuit"
3.- check if one of the two or three wires are connected to ground, if  one is, be sure to connect that wire to a  ground-pin on CarButtons's PCB.  Otherwise, just connect any of then to GND and the other to Analog1
Done.
